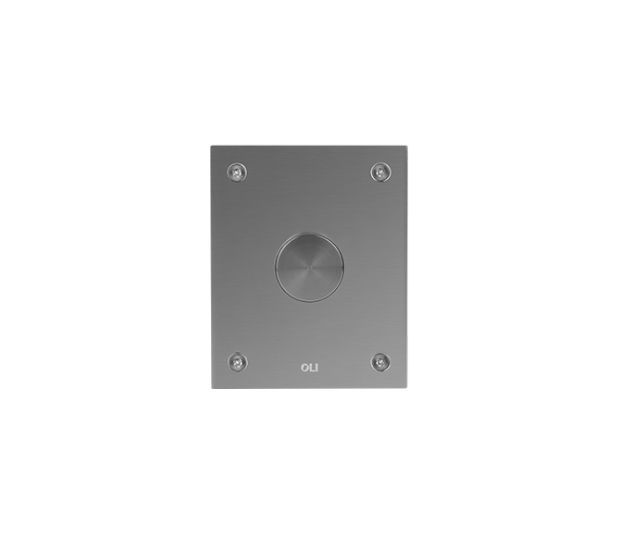

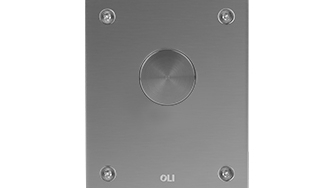

BLINK URINAL
Flush Plates
Stainless steel single flush for urinals. Combines perfectly with the Blink flush plates for in-wall cisterns.
Code . 882264
Characteristics
- Stainless steel flush plate;
- Single flush;
- Mechanically actuated urinal plate for flush valve;
- Vandal-resistant;
- TORX security screws (+bit);
- The flush valve has to be installed before closing the wall;
- Compatible with ECO URINAL FRAME, URINAL Sanitarblock and DOUBLE FRAME WC/URINAL/ WASHBASIN;
- 2.5mm thick
Urinal concealed pre installation
- Adjustable flow;
- Flow pressure: 0.8 – 5 bar;
- Flush volume: 0.3 l/s;
- G ½” water connection;
- Protection cover 110mm;
- Pre-assembled water path with isolating valve;
- Sealing plug.
