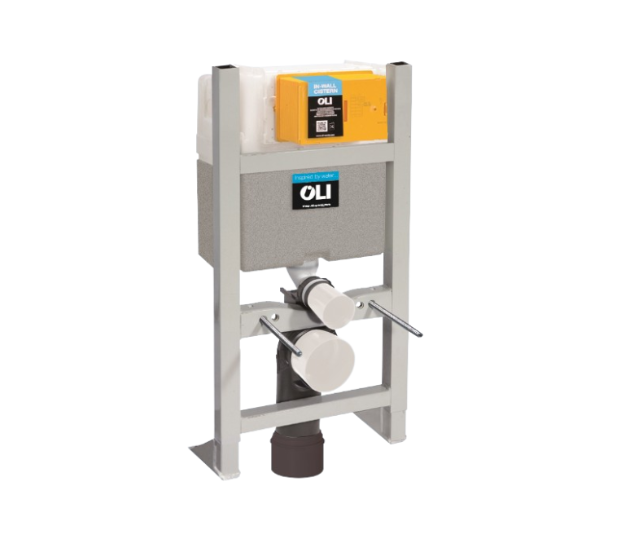

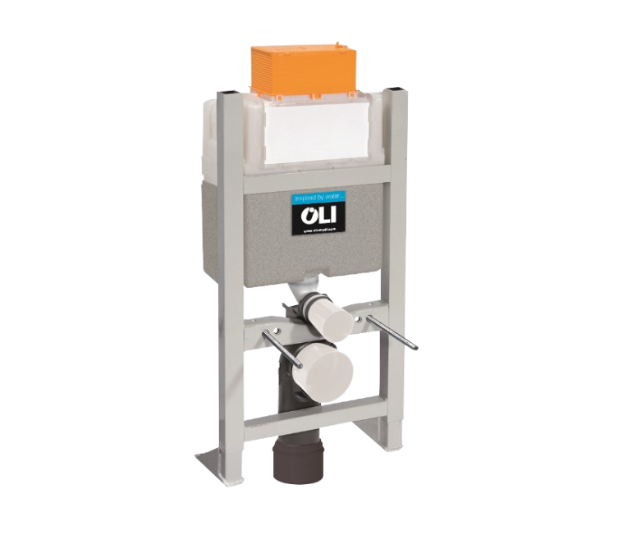

Expert Plus Free Standing 820
In-Wall Installation Systems
The Free-Standing installation system is used in drywall applications with a wall-hung toilet. The main advantage of the system is the easiness and speed of safely installing a concealed cistern with a wall hung toilet without the need of any type of wall.
Code . 048375
Characteristics
- Dual flush 6/3L in-wall cistern (adjustable to 4/2 or 7/3L);
- Top or front actuation/access;
- Polypropylene (PP) cistern highly resistant and inalterable to thermal stress;
- Mechanic or pneumatic actuation;
- Upon request some versions compliant with:
- Sai-Watermark/NF/Belgaqua/KIWAUK/WRAS certification;
- EN 14055 CE marking;
- Solid wall installation;
- Lower/under bench installation possible;
- 150mm thick.
Specificc features:
- Compatible with all wall-hung toilets;
- Drywall installation;
- Frame tested for a 400kg load;
- Height adjustable from 0 to 200mm;
- Depth adjustable outlet bend;
- Lower/under bench installation possible;
- 180mm thick.
Included:
- Wall fixing kit;
G ½’’ stop valve;
Inlet and outlet toilet connection;
Toilet fixing material (when applicable);
Outlet bend and Ø90/110 adaptor (when applicable).
