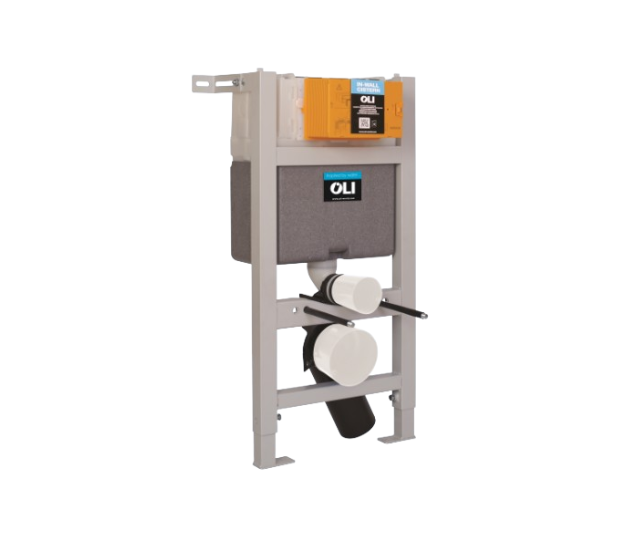

Expert Plus Sanitarblock 820
In-Wall Installation Systems
The Sanitarblock installation system is suitable for applications in drywall with load bearing walls. The main advantage of the system is the easiness and speed of safely installing a cistern with a wall-hung toilet.
Code . 721703
Characteristics
- Dual flush 6/3L in-wall cistern (adjustable to 4/2 or 7/3L);
- Top or front actuation/access;
- Polypropylene (PP) cistern highly resistant and inalterable to thermal stress;
- Mechanic or pneumatic actuation;
- Upon request some versions compliant with:
- Sai-Watermark/NF/Belgaqua/KIWAUK/WRAS certification;
- EN 14055 CE marking;
- Solid wall installation;
- Lower/under bench installation possible;
- 150mm thick.
Specific features
- Compatible with all wall-hungs toilets;
- Solid wall or drywall installation;
- Frame tested for a 400kg load;
- Height adjustable outlet bend;
- Lower/under bench installation possible;
- 150mm thick.
Included
- Wall fixing kit;
- G ½’’ stop valve;
- Inlet and outlet toilet connection;
- Toilet fixing material (when applicable);
- Outlet bend and Ø90/110 adaptor (when applicable)
