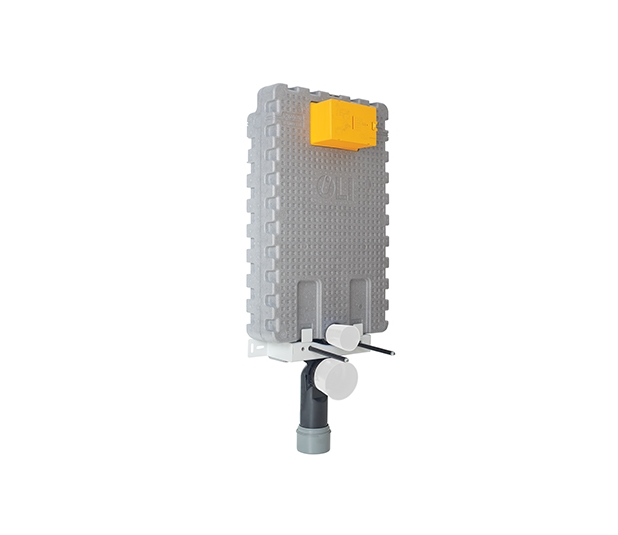

OLI120 Plus Block
In-Wall Installation Systems
This installation system is for wall-hung toilets and should be used when installing the cistern in a solid wall that will be brick-lined. It is distinguished by an easy and fast installation.
The Block installation system is also distinguished by the fact that it has a full EPS coating, giving it a strong acoustic resistance. The metal links are fixating supports to rely confidence during the installation of the cistern. Besides ensuring a higher resistance on the fixation, it increases the margin of adjustment according to the wall thickness.
Code . 880779
- Dual flush 6/3L in-wall cistern (adjustable to 4/2 or 7/3L); Mechanical, Pneumatic, Electronic, Hydroboost and AC
- versions available;
- Polypropylene (PP) cistern highly resistant and inalterable to thermal stress;
- Upon request some versions compliant with: NF/KIWA/ Belgaqua/WRAS/KIWAUK certifications;
- EN 14055 CE Marking;
- Compatible with all floor and wall-hung mounted toilets;
- Solid wall installation
Specific Features:
- Compatible with all wall-hung toilets;
- Solid wall installation;
- Robust EPS coating that completely encloses the cistern and allows for faster installation;
- 144mm thick;
- Better sound isolation
Included:
- Wall fixing kit;
- G ½’’ stop valve;
- Inlet and outlet toilet connection;
- Toilet fixing material (when applicable);
- Outlet bend and Ø90/110 adaptor (when applicable).
