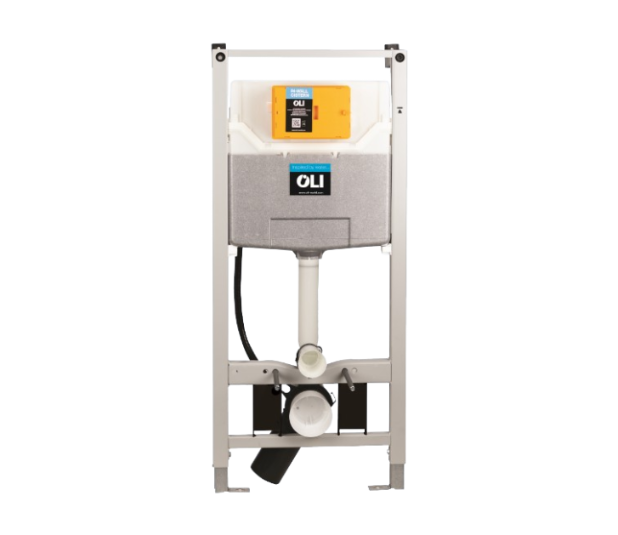

OLI120 Plus Sanitarblock
In-Wall Installation Systems
The Sanitarblock installation system is suitable for applications in drywall with load bearing walls. The main advantage of the system is the ease and speed of safely installing a cistern with a wall-hung toilet.
Assembly can be done by only one person, allowing for a fast and precise levelling of the frame. According to the scenario of construction site, the fixation feet have 3 position and a metal blockade to adjust to the intended position. The fixation feet have a cross drill to increase the margin of the holes, facilitating the installation.
Code . 878846
- Dual flush 6/3L in-wall cistern (adjustable to 4/2 or 7/3L);
- Mechanical, Pneumatic, Electronic, Hydroboost and AC versions available;
- Polypropylene (PP) cistern highly resistant and inalterable to thermal stress;
- Upon request some versions compliant with: NF/KIWA/
- Belgaqua/WRAS/KIWAUK certifications;
- EN 14055 CE Marking;
- Compatible with all floor and wall-hung mounted toilets;
- Solid wall installation.

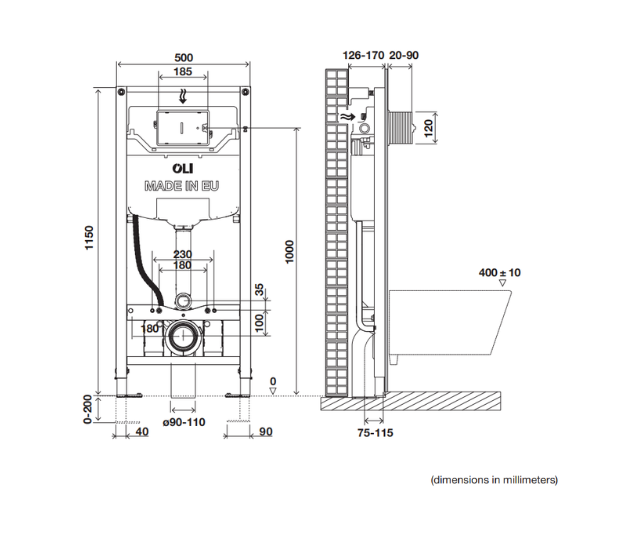

Specific features
- Wall hung toilets up to 660mm long;
- Solid wall or drywall installation;
- Frame tested for a 400kg load;
- Depth adjustable outlet bend;
- Easy and quick installation with fast fit system;
- Height adjustable from 0 to 200mm;
- One man assembly;
- 126mm thick.
Included:
- Wall fixing kit;
- G ½’’ stop valve;
- Inlet and outlet toilet connection;
- Toilet fixing material (when applicable);
- Outlet bend and Ø90/110 adaptor (when applicable).
