OLI120 Plus Sanitarblock
In-Wall Installation Systems

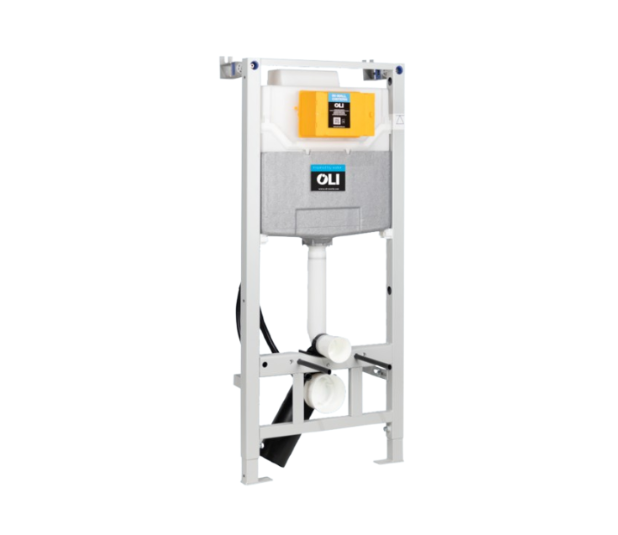

The Sanitarblock installation system is suitable for applications in drywall with load bearing walls. The main advantage of the system is the ease and speed of safely installing a cistern with a wall-hung toilet.
Assembly can be done by only one person, allowing for a fast and precise levelling of the frame. According to the scenario of construction site, the fixation feet have 3 position and a metal blockade to adjust to the intended position. The fixation feet have a cross drill to increase the margin of the holes, facilitating the installation.
Code . 887456
Characteristics
- Pre-assembled structure for installation in front of masonry wall and finish in light wall, plasterboard or wood walls and technical support rail for light wall;
- Prepared for shower toilet installation;
- Pipe in pipe connection D18-25mm;

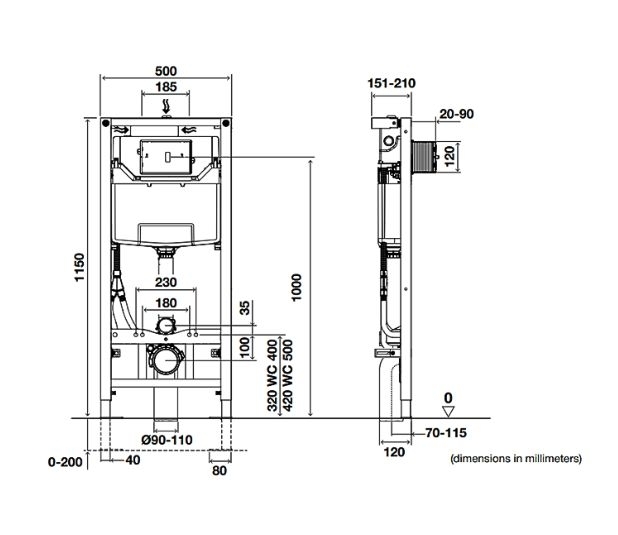

- 151mm thick;
- In accordance with the SINTEF standard.
