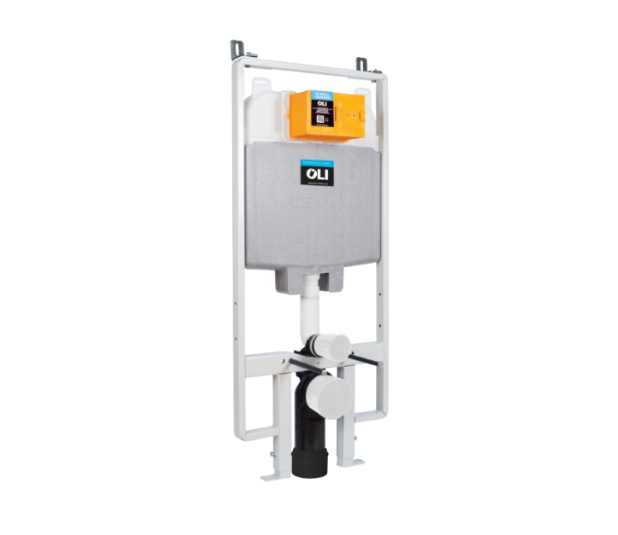

OLI74 Plus S90 Sanitarblock
In-Wall Installation Systems
In-wall cistern for thin walls. OLI presents one of the best solutions for bathrooms with solid wall or drywall and installation of wall-hung toilets. The S90 means that the cistern has a depth of 90mm, which makes ideal for thin walls.
Version
Mechanic S90 Sanitarblock Nano
Mechanic S90 Sanitarblock
Mechanic 4/2L S90 Sanitarblock
Mechanic 4/2L S90 Sanitarblock Nano
Mechanic S90 Sanitarblock 2 Inlet Valves Nano
Mechanic S90 Sanitarblock 2 inlet valves
OLI74 Mechanic OliPureS90 Sanitarblock
Pneumatic - Nano Plus
Pneumatic S90 Sanitarblock
Electronic S90 Sanitarblock
Cap Hydroboost S90 Sanitarblock
Cap AC S90 Sanitarblock
Code . 878840
Characteristics
- Dual flush 6/3L in-wall cistern (adjustable to 4.5/3L);
- Mechanical, Pneumatic, Electronic, Hydroboost and AC versions available;
- Polypropylene (PP) cistern highly resistant and inalterable to thermal stress;
- Upon request some versions compliant with: SABS/SAI-WATERMARK/WRAS/KIWA/UPC/SASO/KIWAUK;
- EN 14055 CE Marking;
- Compatible with all floor and wall-hung mounted toilets;
- Solid wall installation.
Specific features
- Compatible with all wall-hung toilets;
- Solid wall or drywall installation;
- Easy and quick installation;
- Depth adjustable outlet bend;
- Height adjustable from 0 to 150mm;
- Option kit to adjust until 300mm;
- 90mm thick.
Included:
- Wall fixing kit;
- G ½’’ stop valve;
- Inlet and outlet toilet connection;
- Toilet fixing material (when applicable);
- Outlet bend and Ø90/110 adaptor (when applicable).
