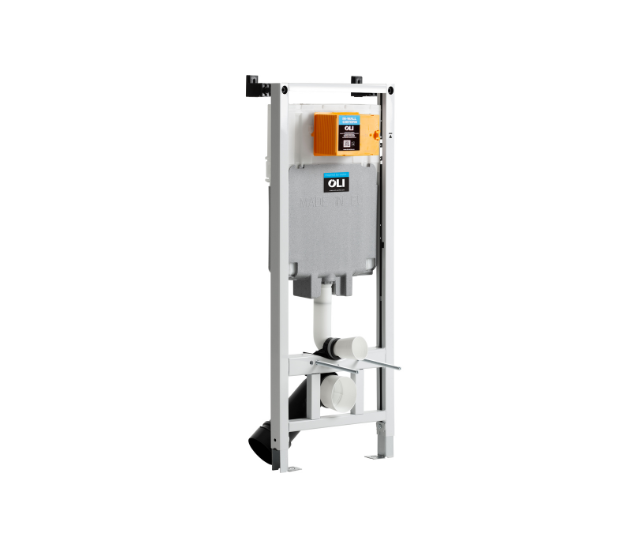

OLI80 Sanitarblock
In-Wall Installation Systems
The Sanitarblock installation system is suitable for applications in drywall with load bearing walls. The main advantage of the system is the easiness and speed of safely installing a cistern with a wall-hung toilet.
Code . 885111
Characteristics
- Dual flush 6/3L in-wall cistern (adjustable to 4.5/3L);
- Polypropylene (PP) cistern highly resistant and inalterable to thermal stress;
- Mechanical actuation;
- Upon request compliant with: Belgaqua certification;
- EN 14055 CE marking;
- Compatible with all floor and wall-hung mounted toilets.
Specific features
- Wall hung toilets up to 660mm long;
- Frame tested for a 400kg load;
- Depth adjustable outlet bend;
- Easy and quick installation with fast fit system;
- Height adjustable from 0 to 200mm;
- One man assembly;
- Solid wall or drywall installation;
- 120mm thick.
Included:
- 360mm flush pipe included;
- Wall fixing kit;
- Net for easier mortar adhesion;
- G ½’’ stop valve;
- WC connection pipe Ø45.
