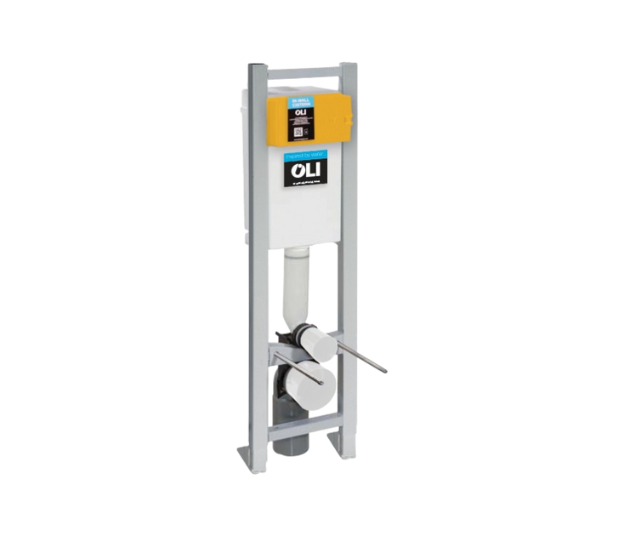

Quadra Plus Free-Standing
In-Wall Installation Systems
The free-standing installation system is used in drywall applications with a wall-hung toilet. The main advantage of the system is the easiness and speed of safely installing a concealed cistern with a wall hung toilet without the need of any type of wall.
Code . 187103
Characteristics
- Dual flush 6/3L in-wall cistern;
- Compatible with Mechanical and Pneumatic flush plates;
- Polypropylene (PP) cistern highly resistant and inalterable to thermal stress;
- Upon request some versions compliant with: NF certification;
- EN 14055 CE marking;
- Compatible with all floor and wall-hung mounted toilets;
- 187 mm thick

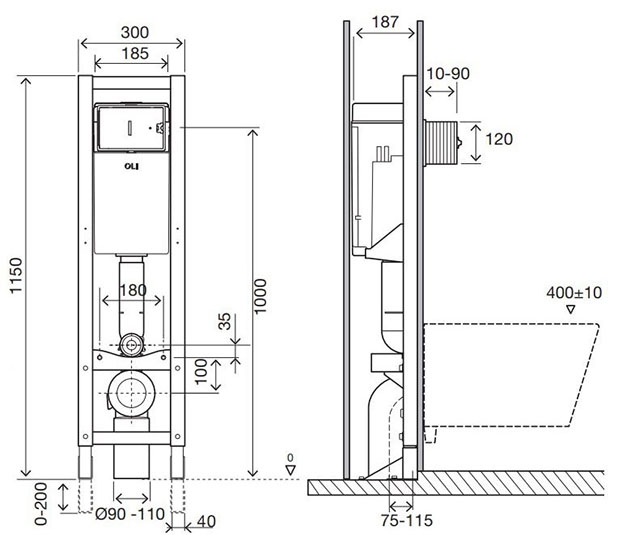

Specific features
- Compatible with wall-hung toilets with a 180mm fixation length;
- Drywall installation;
- Frame tested for a 400kg load;
- Easy and quick installation;
- Depth adjustable outlet bend;
- Height adjustable from 0 to 200mm;
- 300mm reduced width;
- 187mm thick.
Included:
- 315mm flush pipe;
- G ½’’ stop valve;
- WC connection pipe Ø45.
