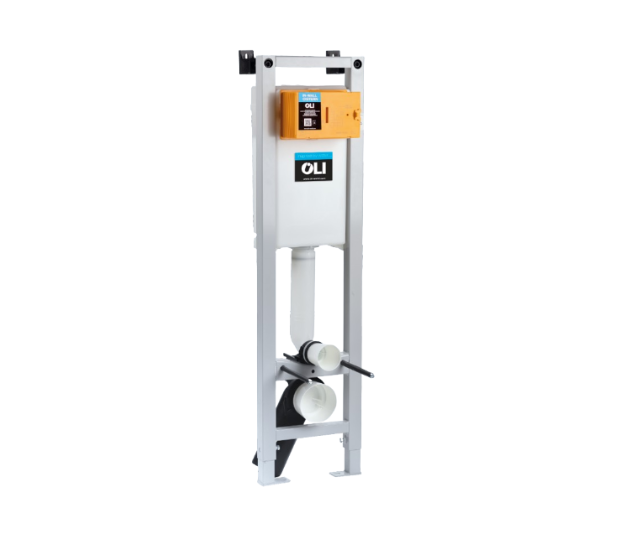

Quadra Plus Sanitarblock
In-Wall Installation Systems
The Sanitarblock installation system is suitable for applications in drywall with load bearing walls. The main advantage of the system is the easiness and speed of safely installing a cistern with a wall-hung toilet.
Code . 141945
Characteristics
- Dual flush 6/3L in-wall cistern;
- Compatible with Mechanical and Pneumatic flush plates;
- Polypropylene (PP) cistern highly resistant and inalterable to thermal stress;
- Upon request some versions compliant with: NF certification;
- EN 14055 CE marking;
- Compatible with all floor and wall-hung mounted toilets;

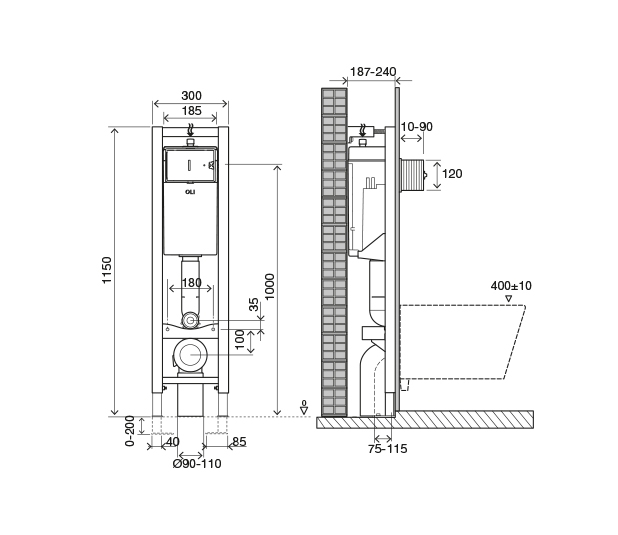

- 187 mm thick,
Specific features
- Compatible with wall-hung toilets with a 180mm fixation length;
- Solid wall or drywall installation;
- Frame tested for a 400kg load;
- Easy and quick installation with Fast-Fit system;

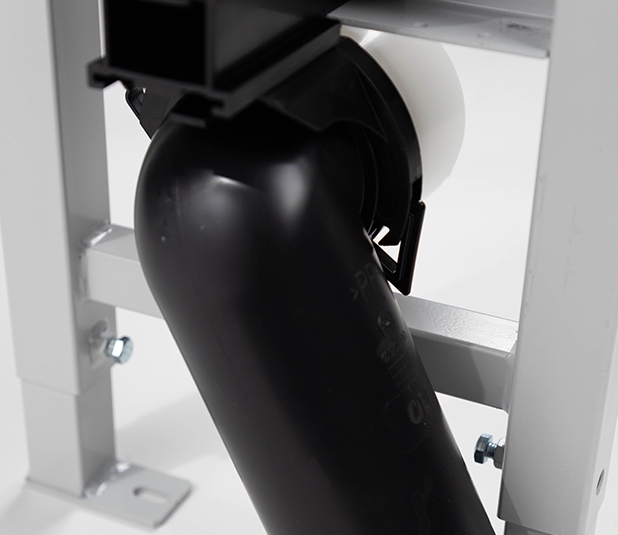

- Depth adjustable outlet bend;

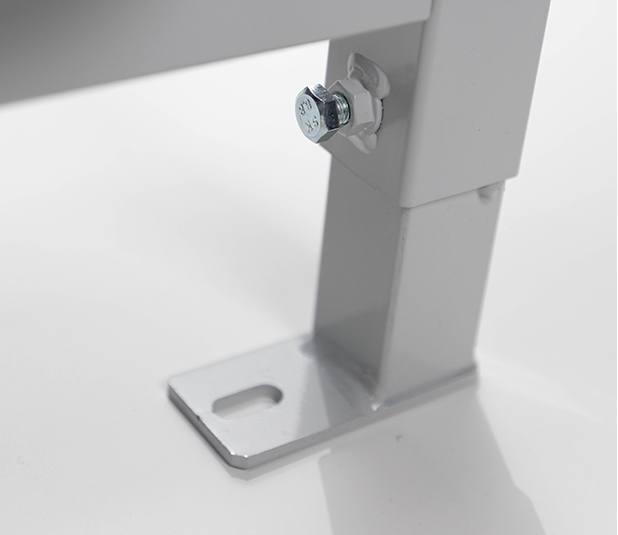

- Height adjustable from 0 to 200mm;
- 300mm reduced width;
- 187mm thick.
Included:
- 315mm flush pipe;
- G ½’’ stop valve;

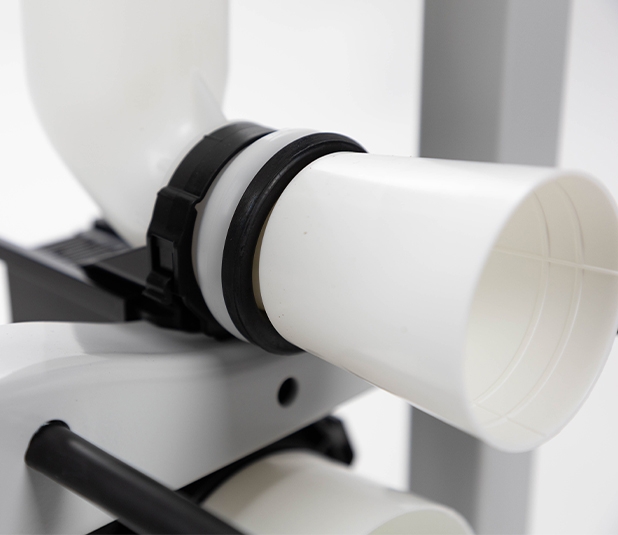

- WC connection pipe Ø45.
