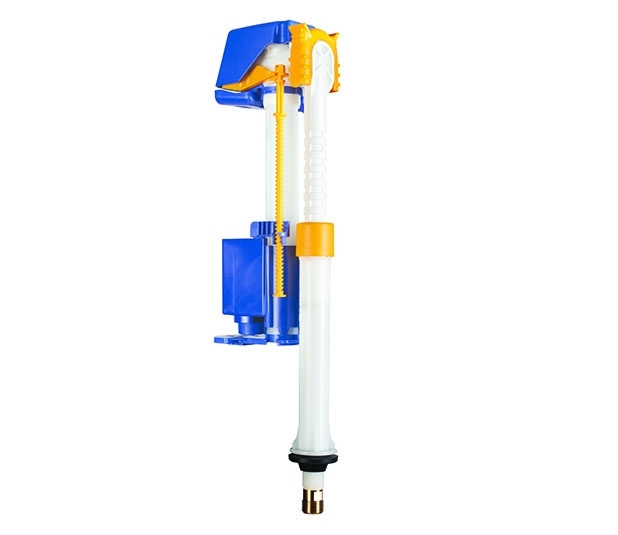

AZOR Plus
Universal Mechanisms

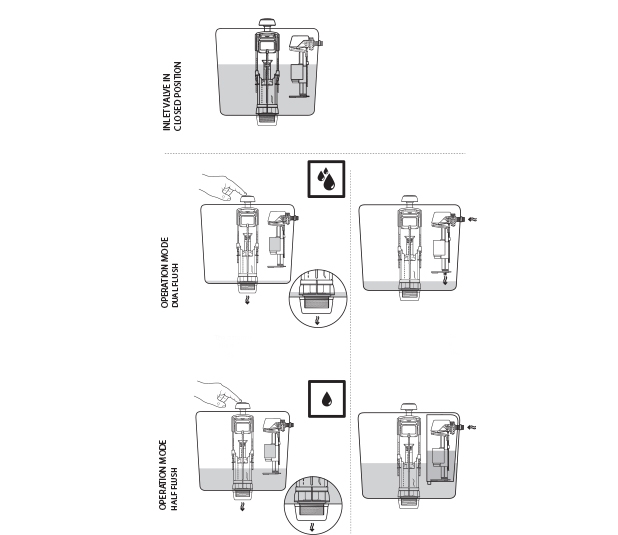

The Azor Plus inlet valve has a delayed opening system, it only opens the water after the flush valve closes. This system allows a water saving of up to 0.5 liters on average with each full flush, resulting in a daily average saving of 9 liters.
Code . 020864
Characteristics
- Delayed refilling inlet valve: it starts after the outlet valve is in the closed position;
- Side or bottom water supply with ⅜” brass and ½” plastic or brass;

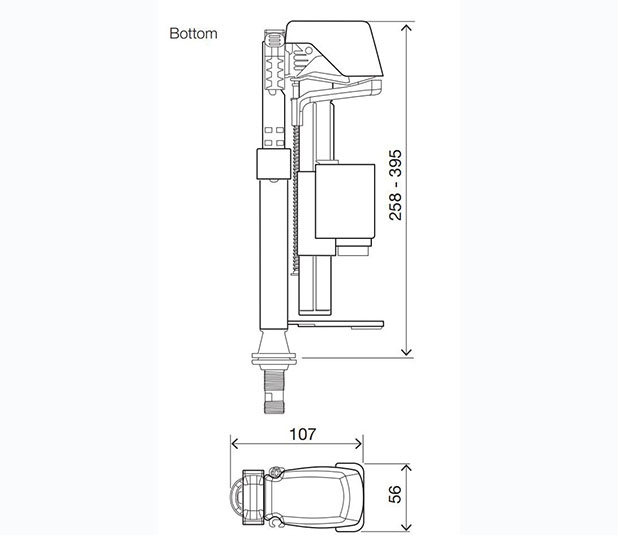

- Adjustable height in the bottom connection;
- Counter pressure closing system (hydraulic);
- Dynamic pressure functioning range: 0.1 – 14 bar;
- Maximum static pressure: 20 bar;
- Silent valve class I;
- Easy maintenance without the need to disconnect from the water connection;
- Anti-Backflow function;
- Some versions compliant with, KIWA, UPC, NF (side version), WATERMARK or SABS.
