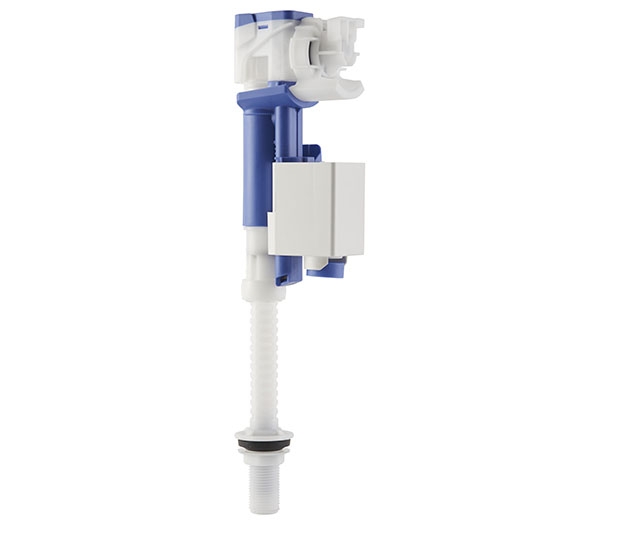

IVC102 Plus
Universal Mechanisms
The IVC102 inlet valve, with his delayed opening system, only opens the water after the flush valve closes. This system allows a water saving of up to 0.5 liters on average with each full flush, resulting in a daily average saving of 9 liters.
Code . 878737
Characteristics
- Quick filling;
- Compliant with UPC;
- Bottom inlet valve with ½” brass, plastic or 15/16” in plastic connection;
- Delayed refilling inlet valve: it starts after the outlet valve is in the close position;

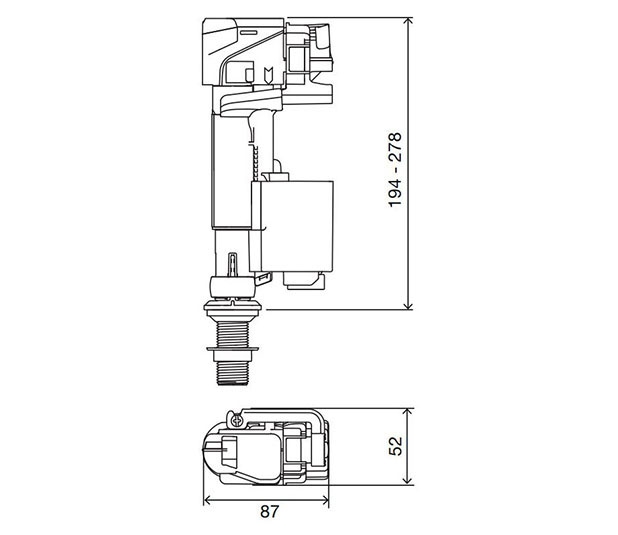

- Height adjustable;
- Silent inlet valve, class I;
- Integrated filter can be cleaned;
- Counter pressure closing system (hydraulic);
- Dynamic pressure functioning range: 0.5-6bar;
- Maximum static pressure: 16bar;
- Anti-backflow function;
