IVC100 PLUS
Universal Mechanisms

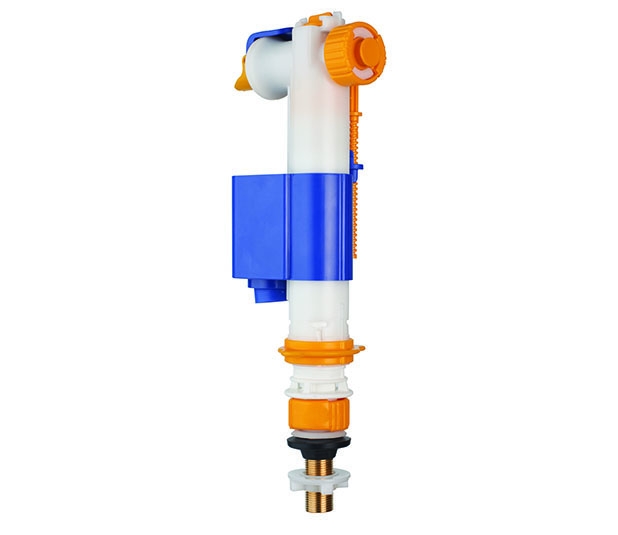

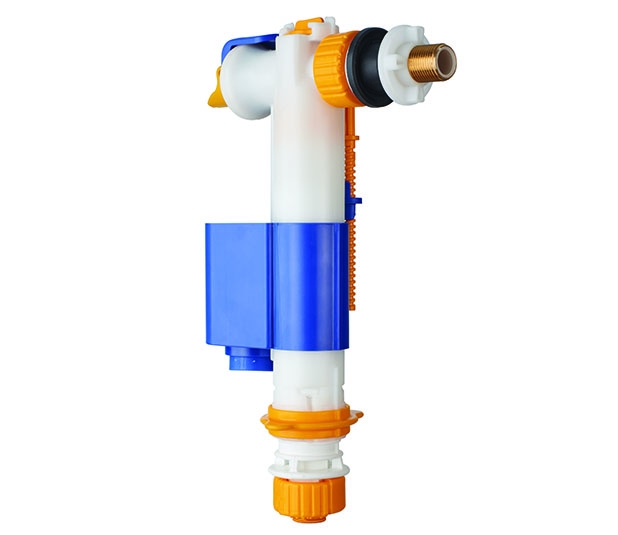

An inlet valve with both a bottom and side water supply in the same inlet valve. Easy to install and easy maintenance with an integrated filter that can be cleaned without disconnecting from the water connection
IVC100 Plus has a delayed opening system, it only opens the water after the flush valve closes. This system allows a water saving of up to 0.5 liters on average with each full flush, resulting in a daily average saving of 9 liters.
Code . 883818
Characteristics

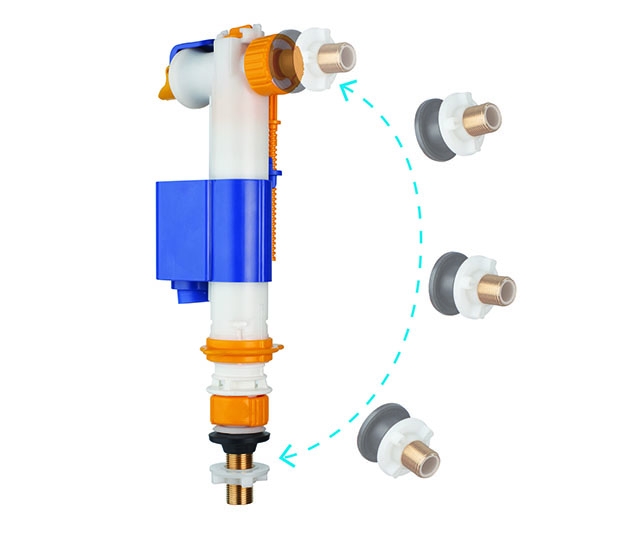

- Side or bottom water supply connection in the same inlet valve;
- Integrated filter that can be cleaned without removing the water connection;

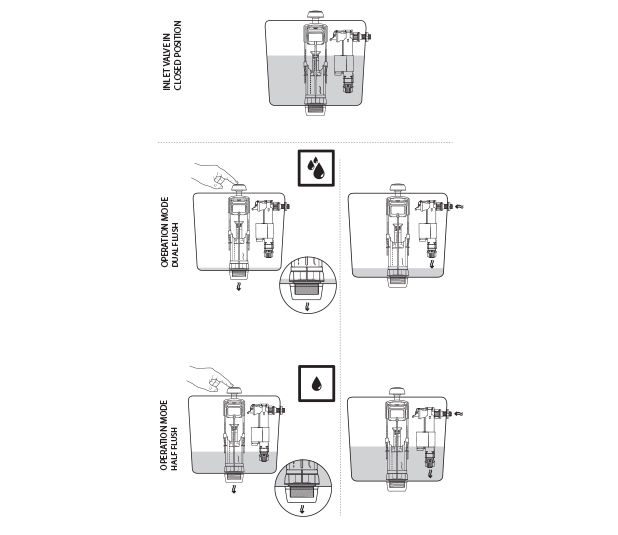

- Delayed refilling inlet valve: it starts after the outlet valve is in the close position;
- Side and bottom inlet valve, with ⅜” brass;

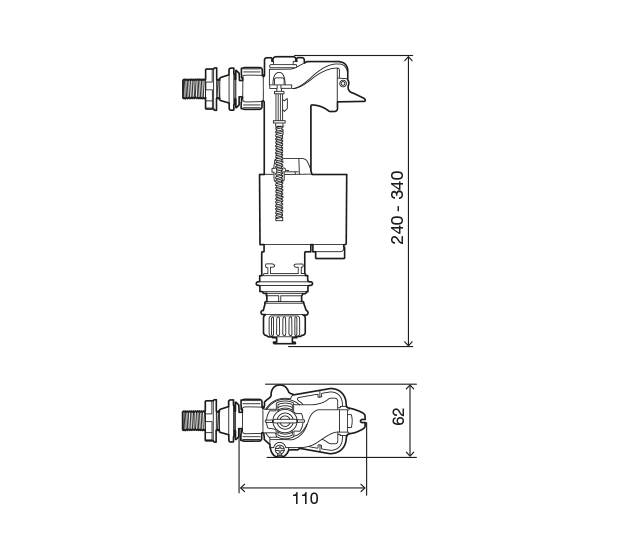

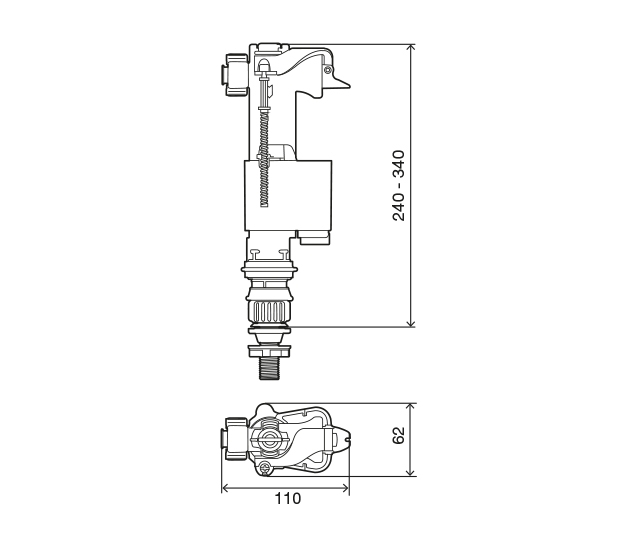

- Adjustable height in the bottom connection;
- Counter pressure closing system (hydraulic);
- Dynamic pressure functioning range: 0.1 – 8 bar;
- Maximum static pressure: 8bar;
- Easy maintenance, no need to disconnect water connection;
- Anti-backflow function.
